Technical Data
- External dimensions:
- 8000 x 2410 mm.
- Width:
- 1910 mm.
- Axle:
- 2 of 1500 Kg.
- P.M.A. (maximum authorised mass):
- 2500 Kg.
- Wheels:
- 185-14 (inches)
- Material:
- Galvanized
- Break:
- Yes

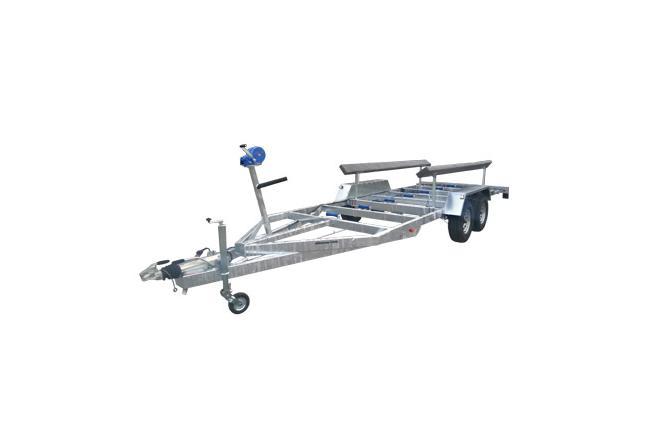

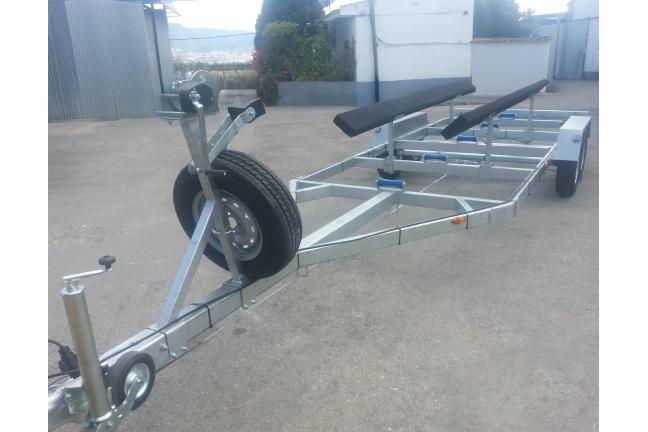

Remolques Lafuente® serie Naútica Alborán
Los remolques Lafuente® de la serie Naútica están diseñados para el transporte seguro y eficaz de barcos de vela, a motor, motos de agua, canoas, barcas de pesca, tablas de windsurf, catamaranes, etc.
Acabados con un tratamiento de galvanizado en caliente con dos baños por inmersión total, para reducir al máximo la oxidación. Remolques resistentes, seguros; para zodiac, barcos rígidos o semirrígidos, embarcaciones ligeras o pesadas. Hasta 3.500 kilos.
Somos fabricantes, podemos diseñarle el remolque que más cubra sus necesidades. Pida presupuesto sin compromiso.
Envíos a toda España.
Equipamiento

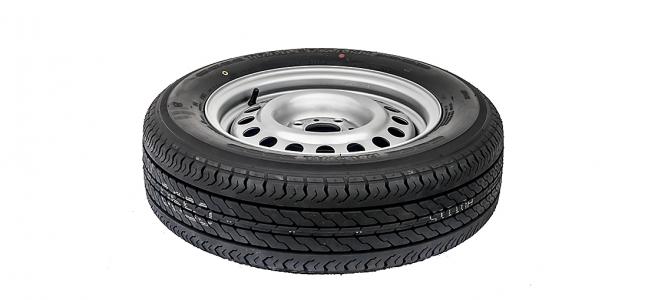

Todos los remolques Lafuente de la Serie Náutica están equipados de serie con cabrestante manual (incluye cincha + gancho), rueda jockey y rueda de repuesto.

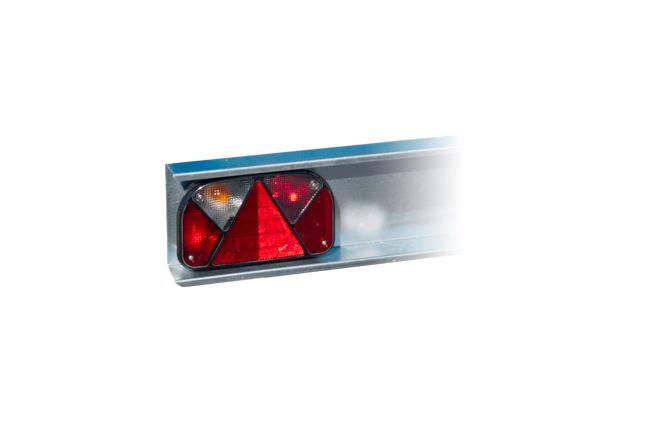

Disponen de guía de luces extensible de 800 mm. para regular la embarcación con el remolque y cubrir la longitud del motor.
Elementos de apoyo: barras o rodillos de poliuretano o PU y 3 rodillos de quilla con soporte a lo largo del remolque.
Ventajas
- Easily navigate your boat to other areas of leisure.
- Better conservation and maintenance of the boat. More comfortable and effective cleaning, protecting it from slime or other organisms.
- Save on docking point.
- The jockey wheel makes it easy to move the trailer when not is attached to the vehicle.
- The rollers with adjustable arms adjustable in height and in position, they allow you to adapt the trailer to the characteristics of the keel.
- Designed to facilitate launching, both entry and water outlet.
- The 800mm rail can be easily removed so that the electrical system does not come into direct contact with water.
Recommendations
- Know the boat: length, beam, height, keel and weight.
- The boat without the engine must be at least 700 millimeters less than the useful length of the trailer.
- The load capacity of the trailer has to be higher than the boat to be able to carry the engine, fuel and all the accessories necessary for navigation.
- Unbraked trailers cannot load more than 750 kilos. If they exceed 750 kilos, apart from the inertia brake, they must have a red license plate, circulation permit, 13-pole electronic kit and pass the ITV annually.
- Adjust payload weight. If you load a lot in the rear of the trailer, the rear wheels of the vehicle may lift off the road. If the load in the front area of the trailer is very high, it will directly affect the braking effectiveness and the direction of the car. We recommend adjusting and sharing the weights.
- Documentation for light trailers (less than 750 Kg. MMA) Light trailers whose Maximum Authorized Mass is less than 750 kilos, do not need to carry any additional documentation. They will be able to circulate with the circulation permit and the documentation of the vehicle that tows it.
- It is mandatory that all trailers carry insurance civil liability. It is recommended to call the vehicle’s insurance company to be informed. Initially, trailers with an MMA of less than 750 kilos do not require the payment of an extraordinary fee, however those of more than 750 kilos may suffer a price increase.
